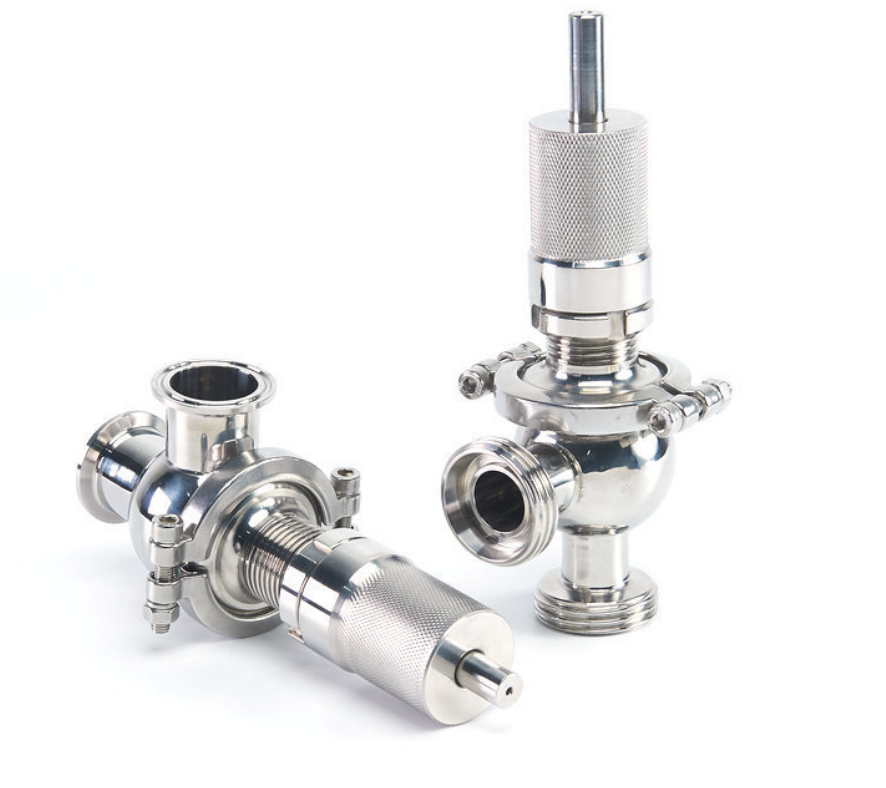

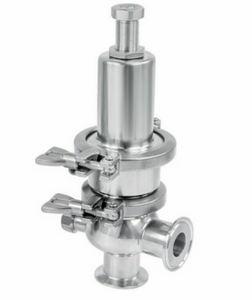

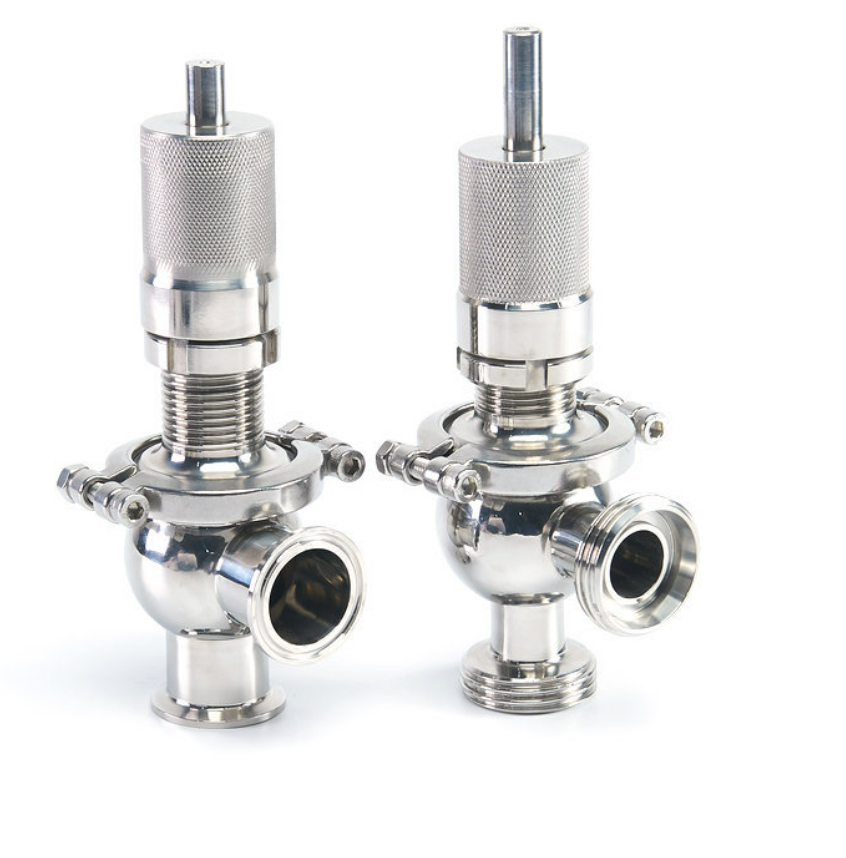

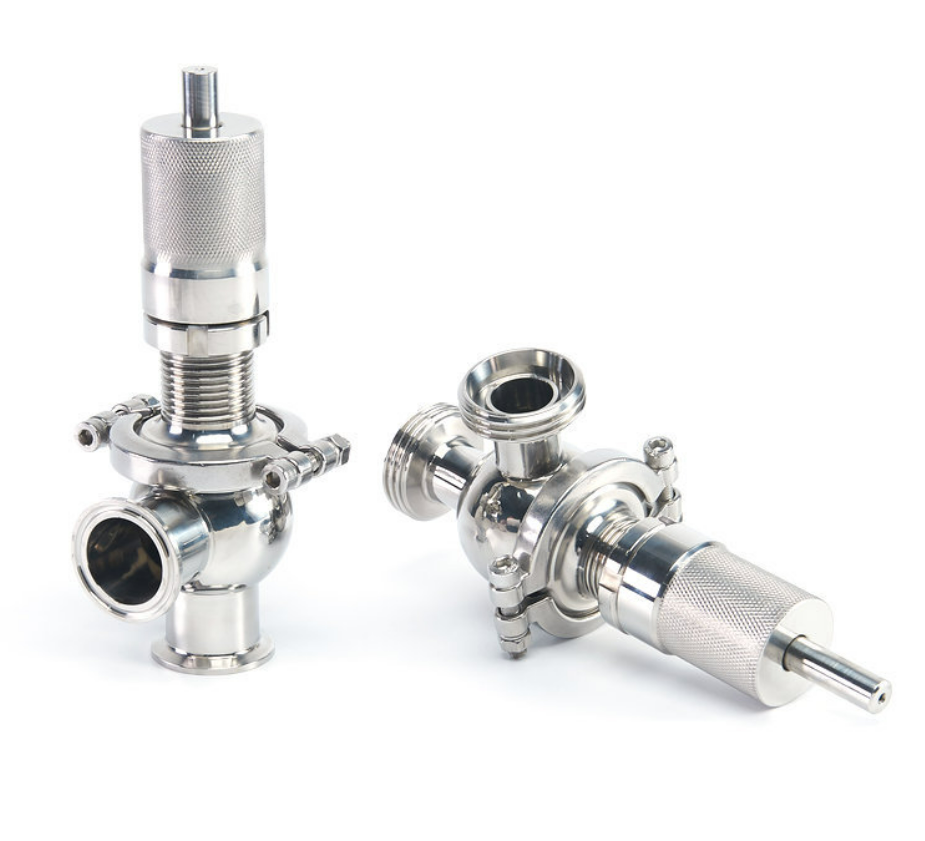

SS316L Sanitary Safety Valve/ Stainless Steel Safety Valve
Application
The safety valve is used to protect the flow pressure safety through pipes, pumps, accessories, pools, etc.
With sanitary and safe design, it's avoid operation danger and equipment failure caused by exceed pressure.
With sanitary design and completely material of stainless steel, the valves is the best choice for protection of equipment in beverage, pharmaceutical and fine chemical industries.
Operating Principles
Safety valve features: it can be open manually to be CIP
Under normal operating conditions, the valve remains closed.
The specific pressure is set by adjusting the spring pressure nut.
When the pressure in the pipes is exceed the specific pressure, the valve will open automatically to make the liquid pass over, so that pressure in the pipeline is reduced.
The valve can be operated with handle . When the handle remains open on the operation spot, the detergent can flow though the flow valves.
Size specification | DN25-DN100 |
KV | 8.5-180m3/h |
Working Temperature | 0℃～+130℃(EPDM) |
Set Pressure | 0－3bar/0-6bar/6-10 bar |
Material | 304/316L |
Connection type | Schematic diagram | Standard | Size | Characteristic |
Clamped | | ISO SMS ASME BPE JIS | 3/8”-2.5” DN8-DN65 | Easy to connect and disassembly |
Welding | | Sanitary, safe and easy to take |
