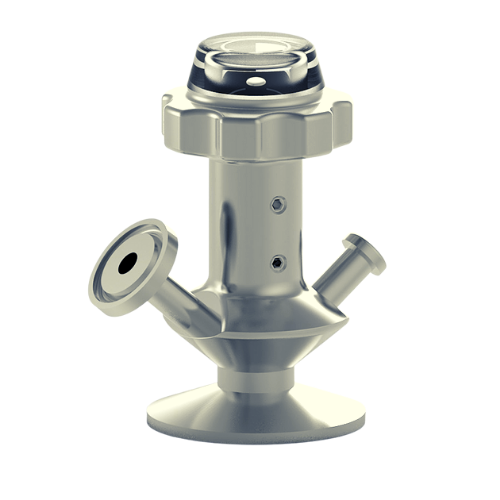

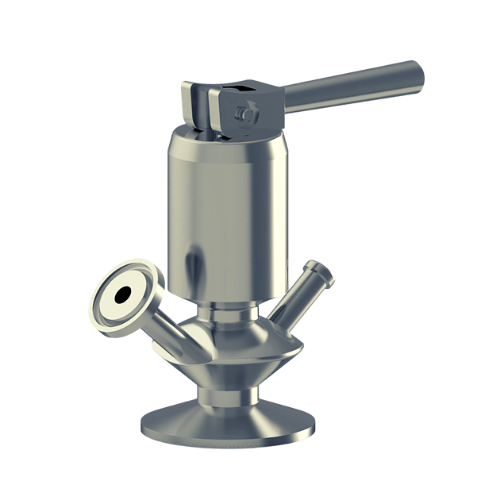

SAMPLING VALVE
Contact with product | SUS 316L | Provide material inspection report | |
Metal No contact with product | SUS 316L | ||
Sealing material | Standard | EPDM+PTFE | Comply with FDA 117,2600 |
Option | VMQ | ||
Working Pressure | 0-10bar | ||
Temperature | Working temperature | VMQ:-50 ℃---+180℃ EPDM:-20℃---+135℃ FPM:-30℃---+230℃ | |
Sterilization temperature | MAX 150℃ 20minutes | ||
Surface treatment | Inside surface treatment | Ra:0.4-0.8μm | |
Outside surface treatment | Ra: 0.8-1.6μm | ||
Connection | Clamp connection(Tri-clamp), welding | ||
Size specification | DN20-DN50 | ||
Connection type | Schematic diagram | Standard | Size | Characteristic |
Clamped | | ISO SMS ASME BPE JIS | 3/8”-2.5” DN8-DN65 | Easy to connect and disassembly |
Welding | | Sanitary, safe and easy to take | ||
Thread | | G NPT RC | Manufacture according to customers’ requirements available | Easy to connect and disassembly Small space |

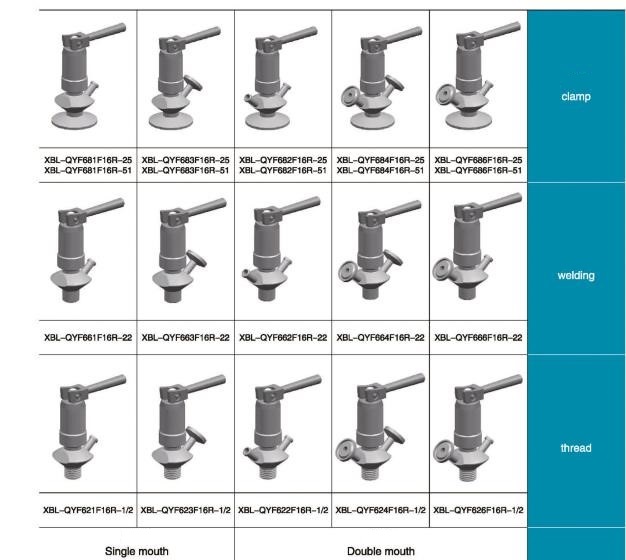

SAMPLING VALVE TYPE
SAMPLING VALVE
Contact with product | SUS 316L | Provide material inspection report | |
Metal No contact with product | SUS 316L | ||
Sealing material | Standard | EPDM+PTFE | Comply with FDA 117,2600 |
Option | VMQ | ||
Working Pressure | 0-10bar | ||
Temperature | Working temperature | VMQ:-50 ℃---+180℃ EPDM:-20℃---+135℃ FPM:-30℃---+230℃ | |
Sterilization temperature | MAX 150℃ 20minutes | ||
Surface treatment | Inside surface treatment | Ra:0.4-0.8μm | |
Outside surface treatment | Ra: 0.8-1.6μm | ||
Connection | Clamp connection(Tri-clamp), welding | ||
Size specification | DN20-DN50 | ||
Connection type | Schematic diagram | Standard | Size | Characteristic |
Clamped | | ISO SMS ASME BPE JIS | 3/8”-2.5” DN8-DN65 | Easy to connect and disassembly |
Welding | | Sanitary, safe and easy to take | ||
Thread | | G NPT RC | Manufacture according to customers’ requirements available | Easy to connect and disassembly Small space |
SAMPLING VALVE TYPE
