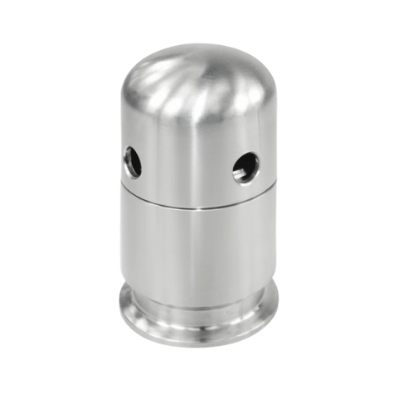

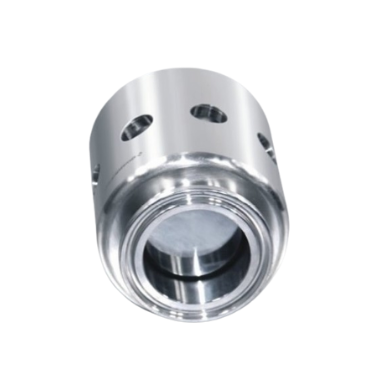

BREATHING VALVE
Application
This breathing valve used in pressure vessel or pipe system; the air release valve has two functions:
when pressure is higher than the set pressure (standard 1 bar) release air Otherwise is closed;
when the pipe system in vacuum (standard-0.9 bar) valve will automatically open. which is to ensure the equipment and related instrument security at the same time it can meet various production process demand. This valve with stainless steel materials, hygienic design, applied to all kinds of food processing, drink ,and pharmaceutical and other industrial fields.
Technical specifications
Item | Specification |
Size | 1"-4", DN25-DN100 |
Connection | Clamp/ welding/ thread, standard: DIN, SMS, IDF, ISO |
Material | 304/316L |
Gasket | EPDM FPM |
Pressure | 0.5~2 bar |
Vacuum | 0.3~0.9 bar |
Temperature | -10℃ to130℃ |
