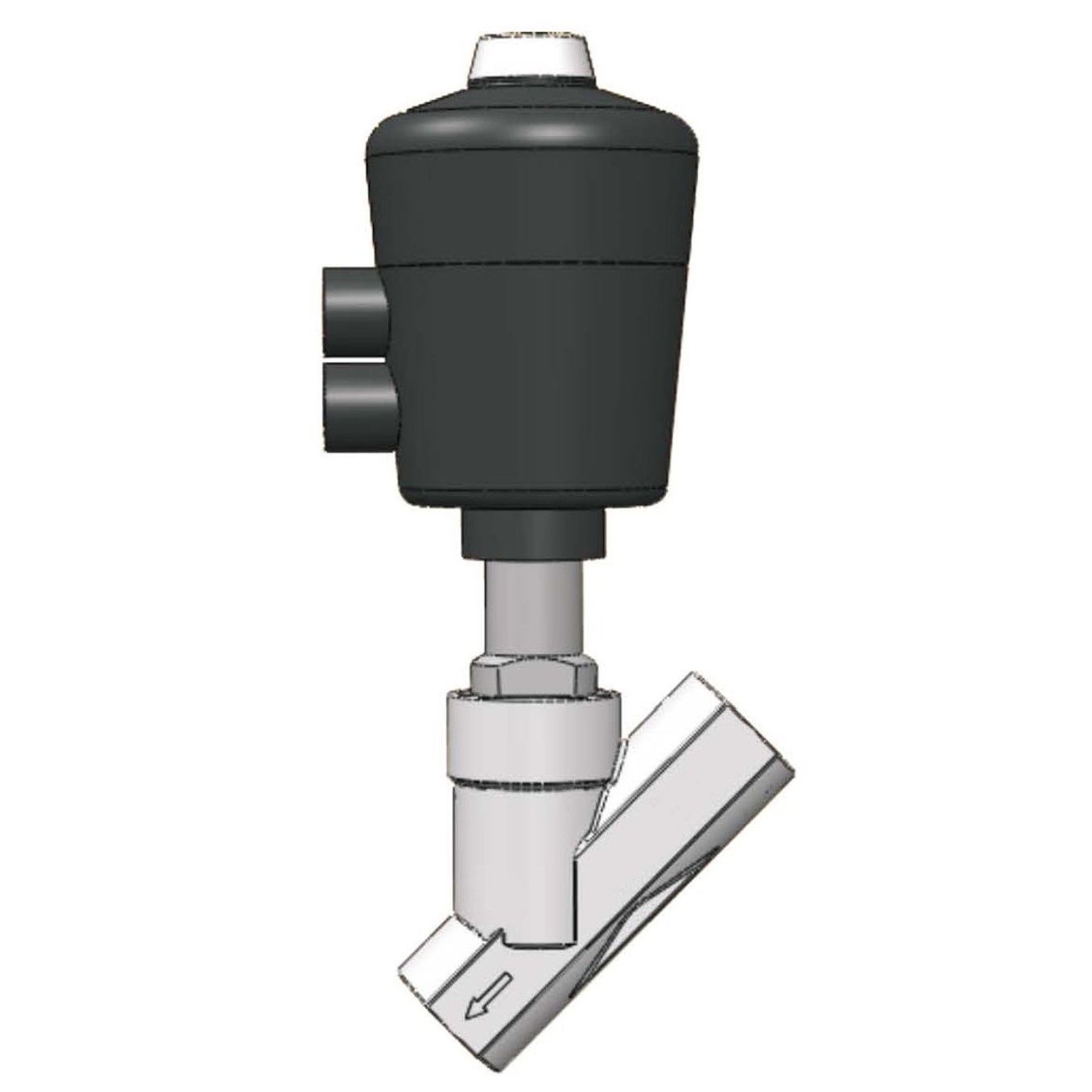

Pneumatic angle seat valve (Thread)
The actuator shell is made of high- strength plastic
With feedback switch and actuator
Control state optional
Various surface finishing for the body available
Automatic welding allowed for the welded valves
Body Material | Contact with product | SUS 316L | 304 optional |
Metal No contact with product | SUS 316L | ||
Diaphragm material | Standard | EPDM+PTFE | Single Silicone PEFE & EPDM optional
|
Option | VMQ | ||
Size specification | DN8-DN65 | ||
Working Pressure | 0-16bar | ||
Compressed air pressure | 5-8 bar | ||
Body structure | Straight-through, three way, U-body, L-sharp, tank bottom, multi-channel | ||
Cylinder material | Engineering plastics PA or PPS | ||
Temperature | Working temperature | VMQ:-50 ℃---+180℃ EPDM:-20℃---+135℃ FPM:-30℃---+230℃ | |
Sterilization temperature | MAX 150℃ 20minutes | ||
Surface treatment | Inside surface treatment | Ra:0.4-0.8μm | |
Outside surface treatment | Ra: 0.8-1.6μm | ||
Connection | Clamp connection(Tri-clamp), welding | ||
CONNECTION TYPE
Connection type | Schematic diagram | Standard | Size | Characteristic |
Clamped | | ISO SMS ASME BPE JIS | 3/8”-2.5” DN8-DN65 | Easy to connect and disassembly |
Welding | | Sanitary, safe and easy to take | ||
Thread | | G NPT RC | Manufacture according to customers’ requirements available | Easy to connect and disassembly Small space |
Flanged | | ANSI DIN JIS | Easy to connect and disassembly High pressure resistance |
