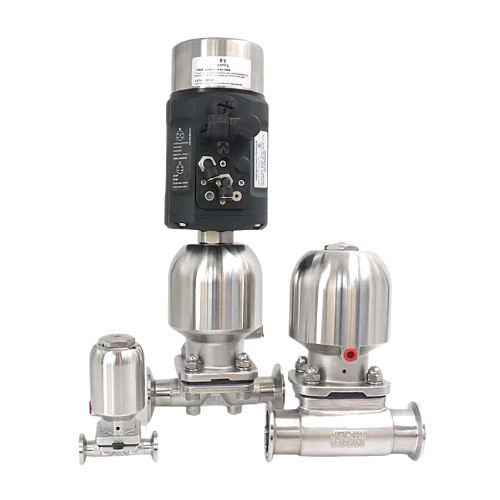

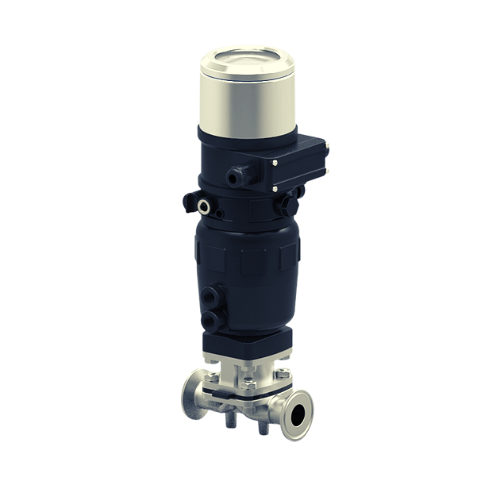

PROCESS CONTROL PNEUMATIC DIAPHRAGM VALVE
The actuator shell is made of high- strength plastic

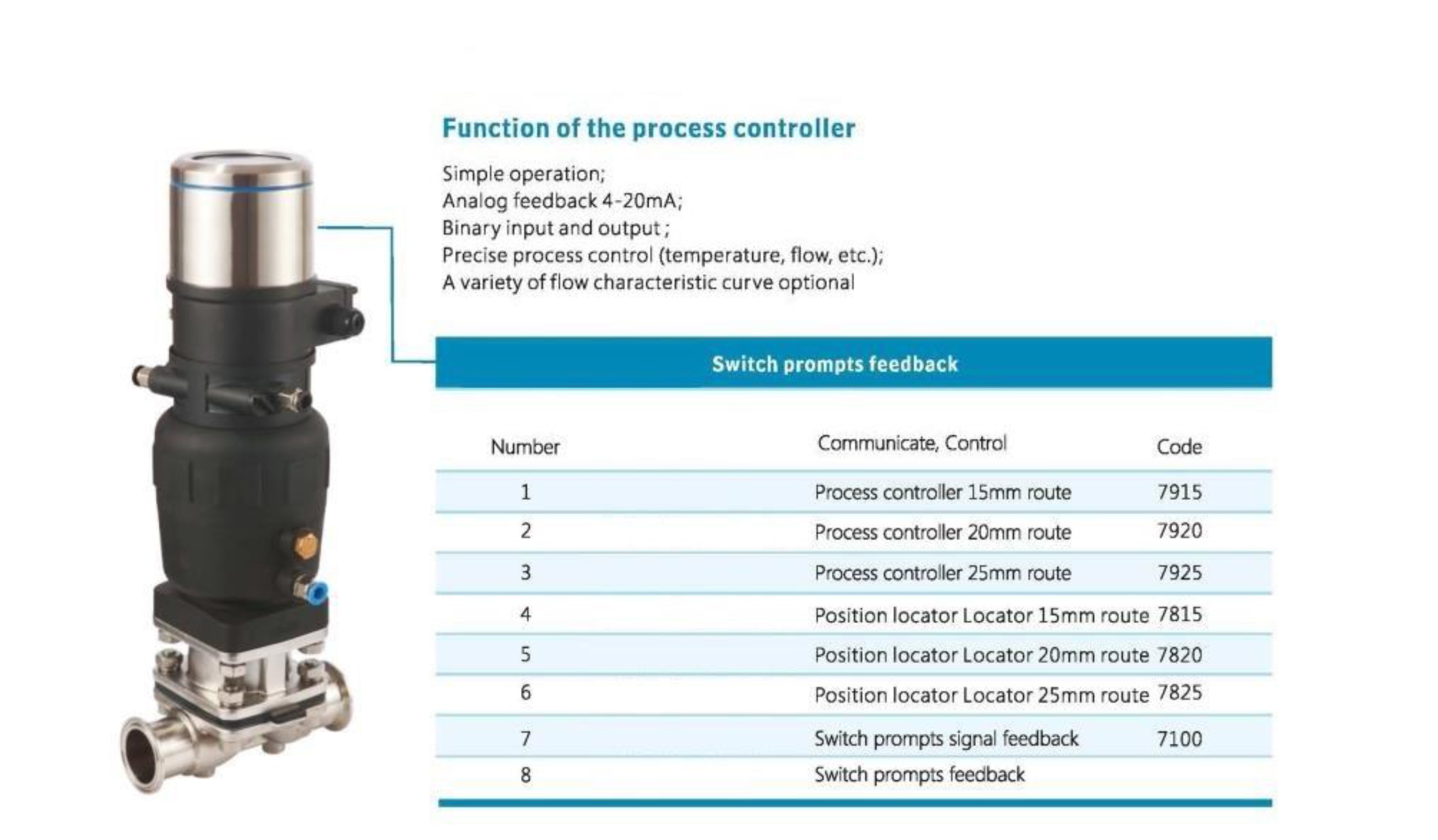

With feedback switch and actuator
Control state optional
Zero-dead corner design
Vertical discharge in accordance with the 3D standard
Various surface finishing for the body available
Automatic welding allowed for the welded valve
Body Material | Contact with product | SUS 316L | 304 optional |
Metal No contact with product | SUS 316L | ||
Diaphragm material | Standard | EPDM+PTFE | Single PEFE & EPDM optional
|
Option | VMQ | ||
Size specification | DN8-DN65 | ||
Working Pressure | 0-10bar | ||
Body structure | Straight-through, three-way, U-body, L-sharp, tank bottom, multi-channel | ||
Temperature | Working temperature | VMQ:-50 ℃---+180℃ EPDM:-20℃---+135℃ FPM:-30℃---+230℃ | |
Sterilization temperature | MAX 150℃ 20minutes | ||
Surface treatment | Inside surface treatment | Ra:0.4-0.8μm | |
Outside surface treatment | Ra: 0.8-1.6μm | ||
Connection | Clamp connection (Tri-clamp), welding | ||
CONNECTION TYPE
Connection type | Schematic diagram | Standard | Size | Characteristic |
Clamped | | ISO SMS ASME BPE JIS | 3/8”-2.5” DN8-DN65 | Easy to connect and disassembly |
Welding | | Sanitary, safe and easy to take |
